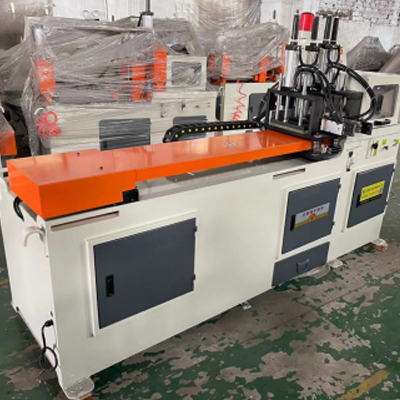

YR-455CNC Aluminum Cutting Machine
I. Purpose of Aluminum Profile Cutting Machine (Aluminu […]
Product Description
I. Purpose of Aluminum Profile Cutting Machine
(Aluminum Cutting Machine, Profile Cutting Machine)
Suitable for sawing various special-shaped non-ferrous metals, aluminum, aluminum alloys, copper, copper alloys and other materials. Especially ideal for precision sawing of aluminum doors and windows, photo frames, light boxes, screens, electronic parts, heat sinks, audio panels, graphics cards, network cards, CPUs, hard disk shells, MP3 aluminum shells, U disk aluminum shells, plastic steel profiles, bakelite boards, extruded aluminum profiles, paper tubes and profiles.
2. Mechanical Features
- This machine is a WL-455CNC fully automatic servo aluminum cutting machine.
- Adopts servo-driven feeding, which effectively improves feeding accuracy.
- Equipped with ball screw and servo motor for feeding, greatly enhancing repeated feeding precision.
- Uses PLC control system, upgradeable, easy to input and adjust, mostly with digital input mode; simple and easy to learn.
- Cutting operation mode: up-and-down cutting.
- Built-in automatic oil spraying function, effectively improving cutting finish.
- Core highlight: floating clamping feeding, solving two major feeding problems – material dragging and material scratching, greatly improving cutting accuracy and protecting material surfaces.
3. Machine Parameters
| Item | Specification |
|---|---|
| Model | YR-455CNC Aluminum Cutting Machine |
| Spindle Motor Power | 5.5KW |
| Feeding Servo Motor Power | 750W |
| Cutting Mode | Up-and-down arc cutting |
| Max. Single Feeding Stroke | 800MM / 1000mm |
| Applicable Blade Specification | Φ405X25.4XT / Φ455X25.4XT |
| Max. Sawing Width | 280MM |
| Max. Sawing Height | 120MM |
| Working Voltage | 380V |
| Working Air Pressure | 6-8KG |
| Spindle Speed | 2850 RPM |
| Machine Weight | 700KG |
| Machine Dimensions (L×W×H) | 2400×750×1800MM |
