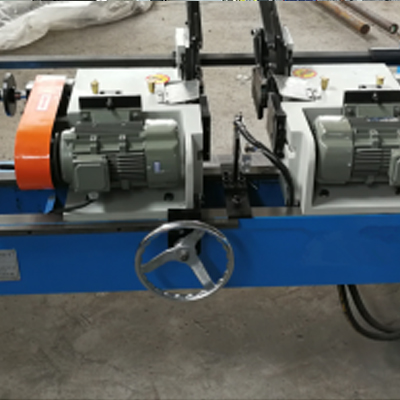

80Y-II Hydraulic Double-Head Chamfering Machine

Equipment Features

• Inclined discharge and automatic feeding for high speed, precision and labor saving.
• The specially designed feeding mechanism is reliable; the middle clamping device can be selected according to the outer diameter of the pipe, with easy and time-saving type replacement.
• A cutter head is mounted on the main shaft, with tool holders on the cutter head and cutting inserts on the tool holders. The ultra-strong cutter head design enables convenient fixing and adjustment, and extends the service life of the cutter head.
• Self-centering fixture is adopted for clamping to ensure machining concentricity.
• Two-stage feeding speed: rapid feeding and slow chamfering save working hours; the slow speed supports stepless adjustment for perfect machining and cutting effects.
• The entire process is automatically controlled by electrical and hydraulic systems, with hydraulic clamping and hydraulic feeding for simple and convenient operation.
• Both manual and automatic functions are available for easy commissioning and use.
• The special cutter head design uses standardized blades for simple and convenient tool adjustment. Machining of pipe inner corners, outer corners and flat surfaces is completed in one pass, with a processing speed of about 3-10 seconds per piece on average (depending on the diameter and thickness of the pipe), realizing high speed and efficiency.
• Adaptable materials: steel pipes, iron pipes, aluminum pipes, copper pipes, stainless steel, PVC pipes, round bars, nylon pipes.
