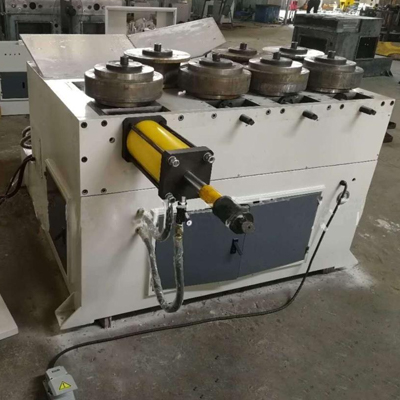

GY120NC-7 Rolling Machine

Detailed Introduction

• Full mechanical drive, compact structure and high reliability.
• Equipped with seven‑wheel drive, not easy to slip, suitable for bending thin‑walled materials.
• Asymmetric arrangement of side wheels to reduce straight segments.
• Workpiece can be fed from both sides of the side wheels.
• Equipped with foot switch and emergency stop for easy and safe operation.
• Stable transmission; circles, arcs or spirals of different curvatures can be obtained simply by adjusting the compression.
• Various metal profiles can be processed by changing die grooves, such as angle steel, flat steel, round pipe and other special‑section profiles.
• Capable of bending large‑radius profiles, avoiding the drawbacks of making extra‑large bending dies. It is an essential supplement to single‑head and double‑head pipe benders.


  Main Specifications / Model	GY120NC-7	Remarks
  Maximum pipe bending capacity	Φ120mm × 6mm	1. Specifications can be customized as per customer requirements
  Minimum bending radius	R ≥ 10D	—
  Bending speed	100mm/s	—
  Oil pump motor power	7.5kW	—
  Reducer power	11kW	—
  Machine dimensions	1600mm × 2000mm × 1300mm	—
  Machine weight	Approx. 4500kg	—
