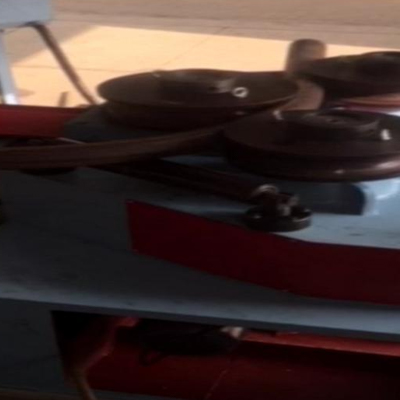

GY130CNC-1a Three-Axis Servo Pipe Rolling Machine
ROUNDING MACHINE SERIES
GY130CNC-1a Three-Axis Servo Pipe Rolling Machine
Main Specifications/models Unit GY130CNC-1a Three-Axis […]
Product Description
| Main Specifications/models | Unit | GY130CNC-1a Three-Axis Servo Rolling Machine |
|---|---|---|
| Max rolling pipe diameter (carbon steel) | mm | 125×25 (spring steel plate) |
| Rolling speed | m/min | 10-15 |
| Die diameter | mm | Φ220 |
| Shaft diameter | mm | Φ100 |
| Motor power (variable diameter servo) | Kw | 7.5 |
| Shaft center distance | mm | 350 |
| Ball screw | HIWIN 5010 | |
| PLC | Mitsubishi (Japan) | |
| Touch screen | WEINVIEW (Taiwan, China) |
Equipment Features
- Reducer drive, compact structure and high reliability.
- Three-wheel drive, not easy to slip, and can bend thin-walled materials.
- Equipped with foot switch and emergency stop function for easy operation.
- Stable transmission; different curvatures of circles, arcs or spirals can be obtained only by adjusting the diameter-varying parameters of the servo motor.
- By changing the die groove shape, various metal profiles can be processed, such as angle steel, flat steel, round steel and other special-section profiles.
- For bending large-radius profiles, it avoids the disadvantages of making super-large bending dies, and is a necessary supplement that cannot be achieved by series single-head and double-head pipe benders.
