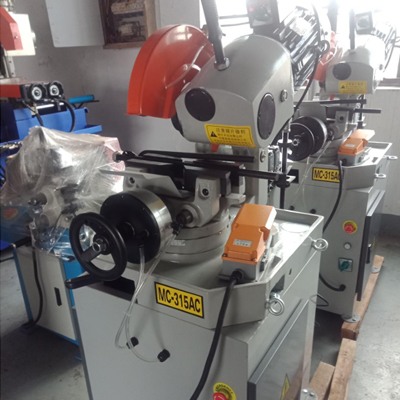

MC-315AC Pneumatic Pipe Cutting Machine
PIPE CUTTING MACHINE SERIES
MC-315AC Pneumatic Pipe Cutting Machine
Performance Features Compact and robust structure, low […]
Product Description
Performance Features
- Compact and robust structure, low noise, no dust pollution.
- Various sawing sections available; accurate angle, burr‑free and flanging‑free cutting surface.
- HSS saw blade can be re‑sharpened after wear, low consumable cost.
- Manual, pneumatic and hydraulic operation modes optional.
- Equipped with automatic feed and automatic clamping, stable, light and efficient running.
- Straight cutting and miter cutting available with high precision.
- Cooling system supports long‑time running and extends saw blade life.
- Air pressure and clamping pressure are separately displayed and ad
Technical Parameters
- Sawing Capacity: Φ80; 65×65; 55×55; 20×20mm
- Maximum Clamp Opening: 110mm
- Main Motor: 4/2 pole changing, 2.4/3.0Kw
- Applicable Saw Blade Diameter: 250 / 275 / 300 / 315
- Overall Dimensions: 650×950×1400mm
Standard Accessories List
| No. | Item | Specification | Qty. | Remarks |
|---|---|---|---|---|
| 1 | Main Machine | — | 1 set | — |
| 2 | Hex Key Set | 3–14 | 1 set | — |
| 3 | Operation Manual | — | 1 pc | Standard document |
| 4 | Certificate of Conformity | — | 1 pc | Standard document |
| 5 | Saw Blade | M42 | 1 pc | Free gift |
