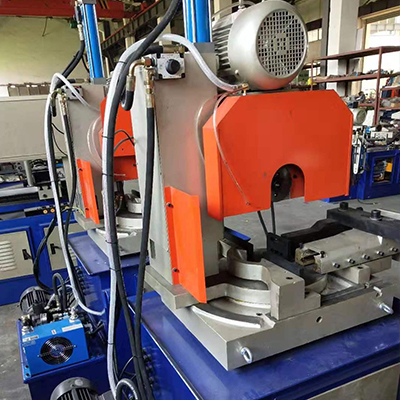

MH-425NC Hydraulic Pipe Cutting Machine
PIPE CUTTING MACHINE SERIES
MH-425NC Hydraulic Pipe Cutting Machine
1. Equipment Features Compact structure with worm gear […]
Product Description
1. Equipment Features
- Compact structure with worm gear drive for high stability.
- Supports various cutting sections with accurate angles and burr‑free, flanging‑free surfaces.
- HSS saw blades can be re-sharpened after wear, reducing consumable cost.
- Equipped with automatic feed and automatic clamping for stable, smooth and efficient operation.
- Cooling system supports long running time and extends saw blade service life.
2. Technical Parameters
| Item | Specification |
|---|---|
| Model | MH-425NC |
| Cutting Angle | 90° |
| Cutting Capacity | Round tube: Φ130mm (enlargeable); Square tube: 120×120mm; Solid bar: Φ50mm; Solid profile: 50×50mm |
| Applicable Saw Blade | Φ250–425mm; Optional: Φ425/Φ400/Φ350/Φ315/Φ300/Φ270 |
| Main Motor | 4KW |
| Spindle Speed | 4-speed variable |
| Machine Weight | 800kg |
| Overall Dimensions (L×W×H) | 1200×1100×1800mm |
| Remarks | Hydraulic clamping, hydraulic cutting |
